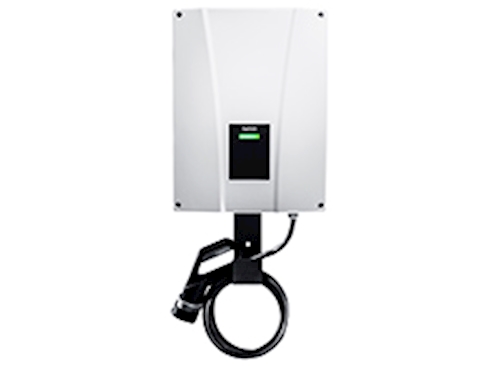

The INGEREV® GARAGE Basic is a practical, simple and functional way to charge your electric vehicle. It is specifically designed for installation on private property, such as private, community or company garages.
Its robust and durable design, with a steel body and aluminum front, means that this charging station can also be installed outdoors. These charging points have been designed to international standard IEC 61851, offering the possibility of charging vehicles in mode 3 of this standard.
The charging point is equipped with a vehicle connection cable, making the daily charging task cleaner and more convenient, as users don't have to bother about getting out their vehicle power cord and storing it after use.
The INGEREV® GARAGE Basic is available in either a single or three phase version, with charging powers of up to 7.4 or 22 kW.
Two model alternatives are available, based on the socket required to charge the vehicle. One is equipped with a Type 1 socket, whilst the other has a Type 2 socket, according to standard IEC 62196-2.
Users are offered the possibility of charging either at the rated power or at a limited charging power so that more power is then available for the rest of the installation. The rated power and limited power options are both user-configurable, within the permissible technical limits.
The station's USB connection can be used to change the parameter settings, access the charging logs, and update firmware, with the possibility of adding upgrades and updates throughout the service life of the charging station.
